Description

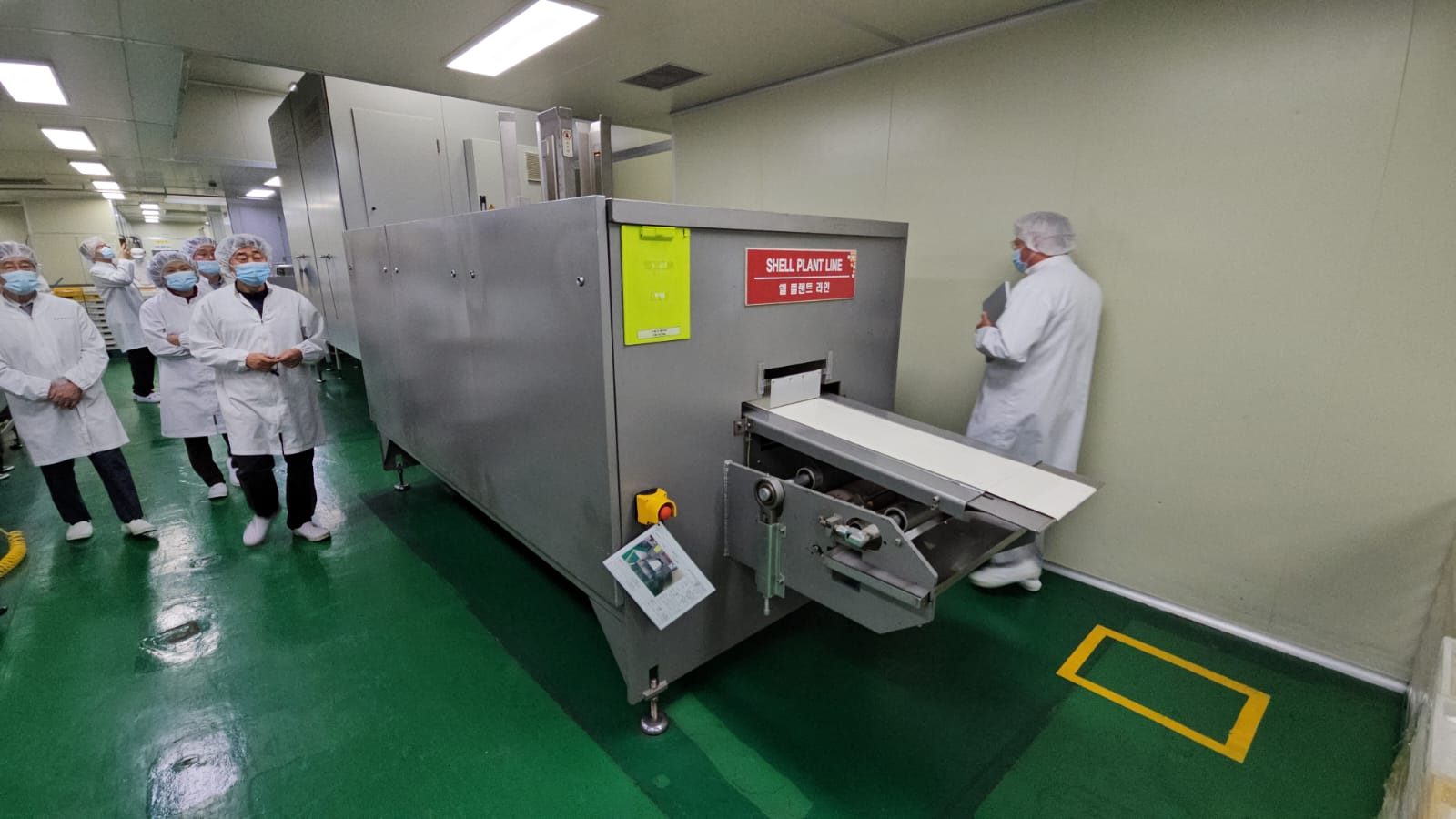

The line model is FA SML  275 Year of manufacture 2008 by Bohnke and Luckau Germany. It includes:

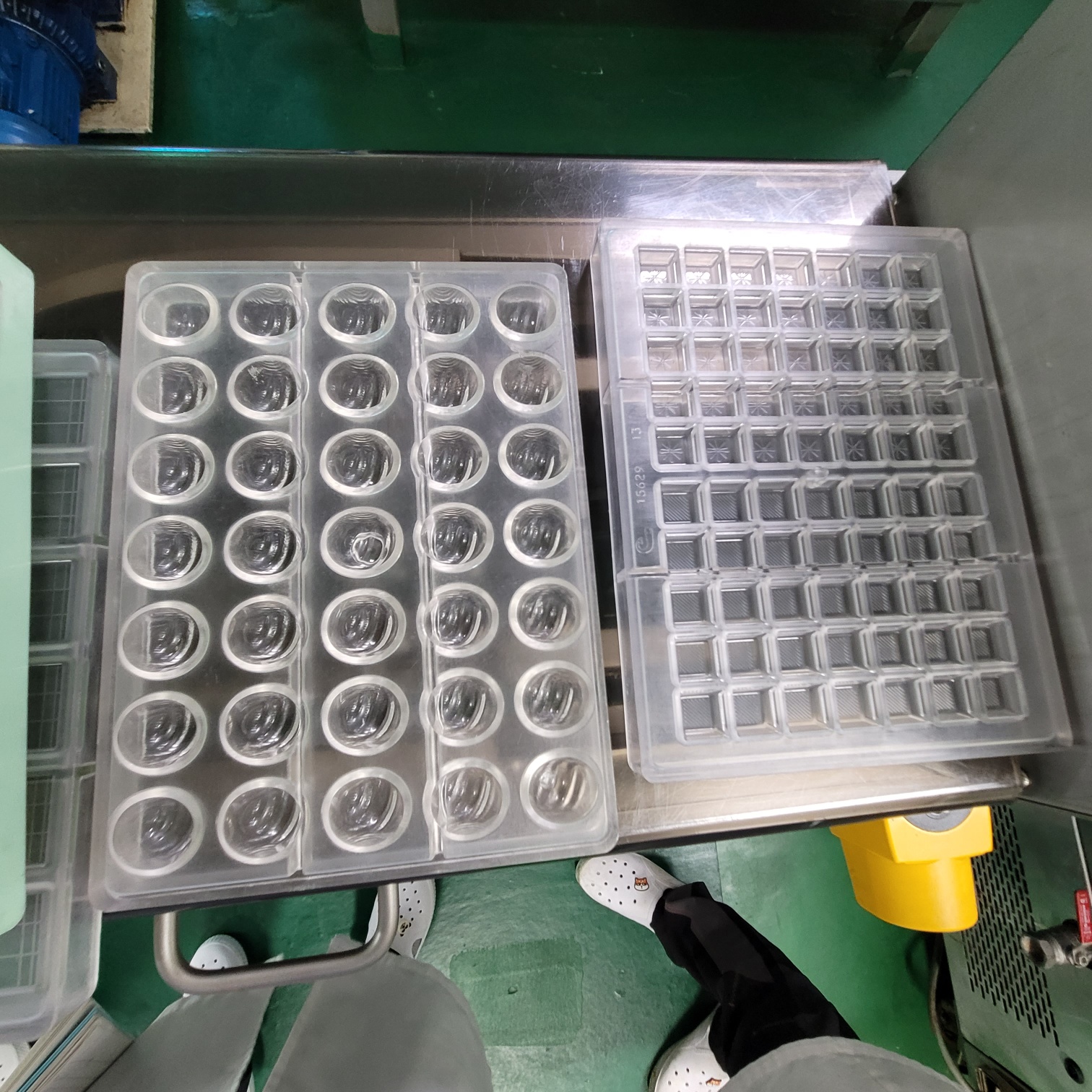

  1. Feeding dispenser for moulds.
  2. Mould heating section

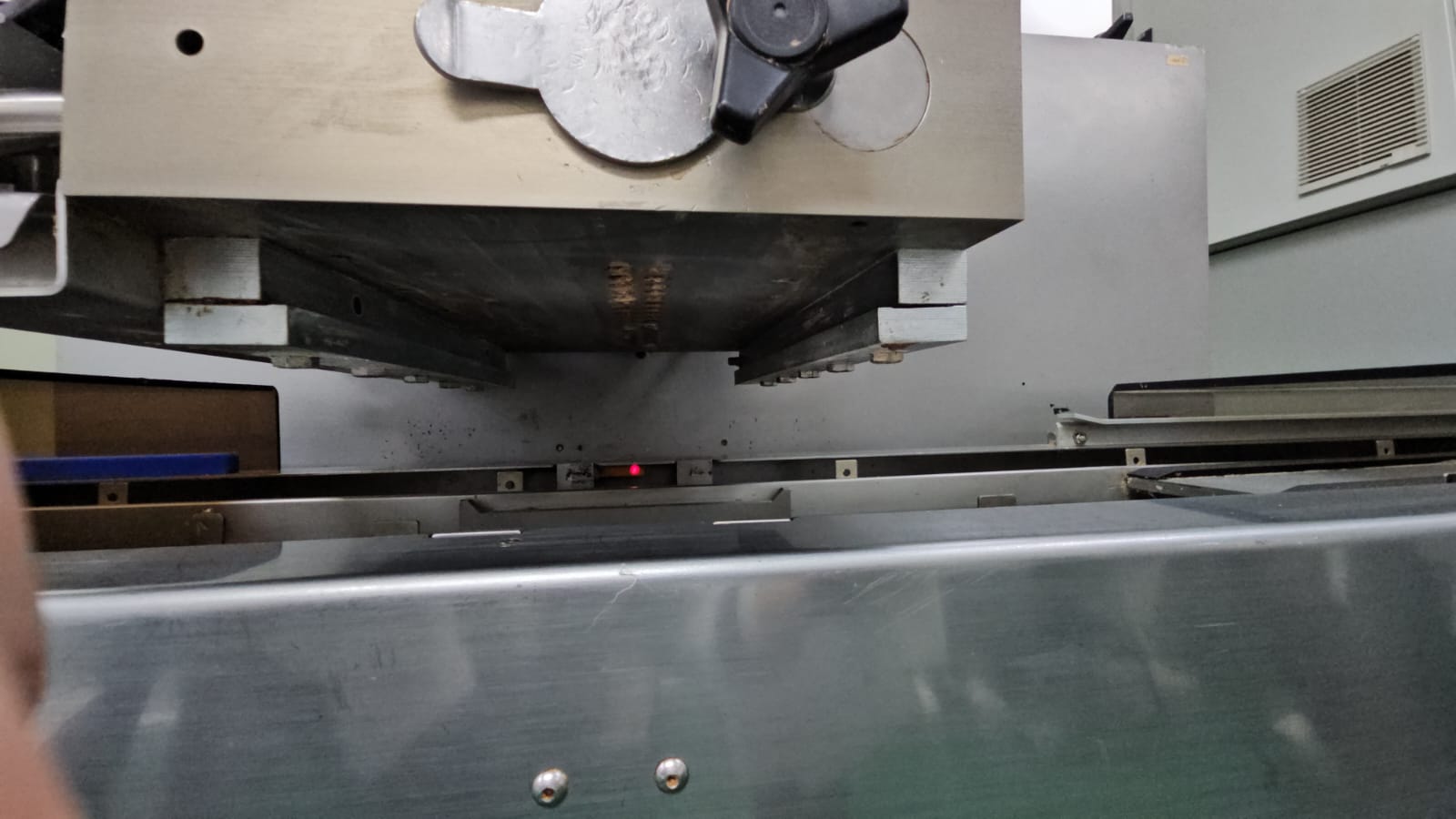

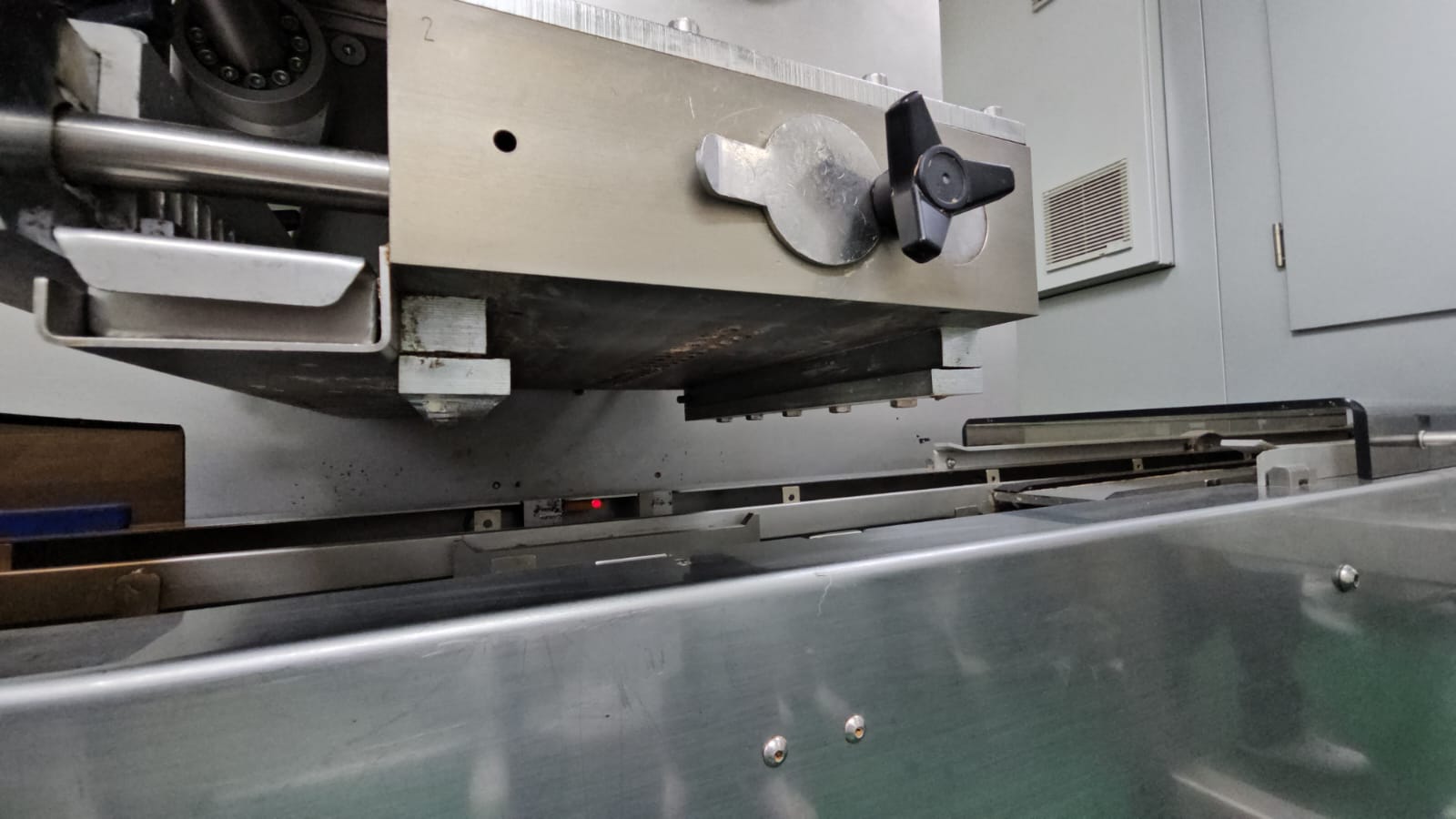

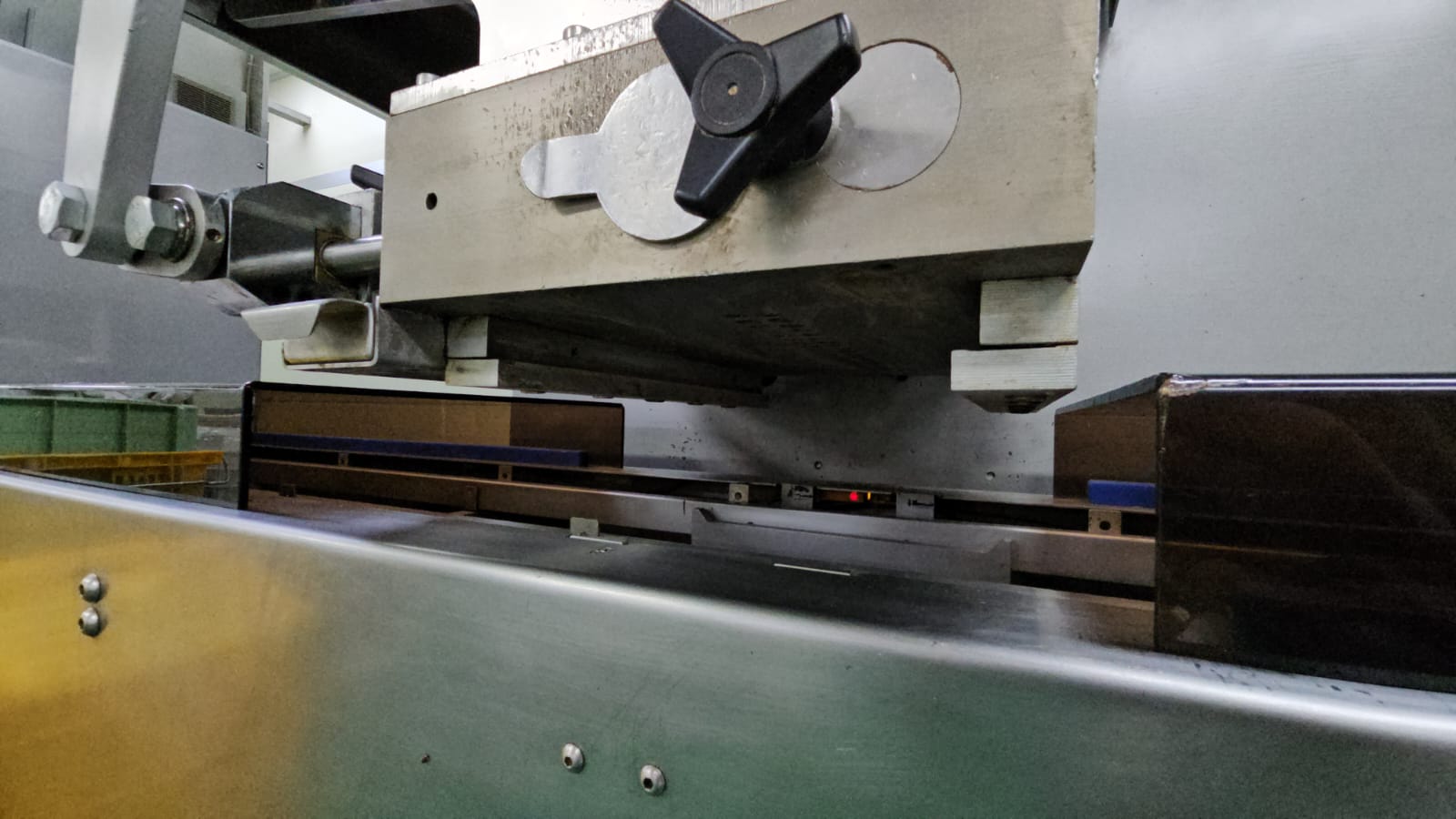

  3. Shell moulding depositor BL D275. Servo driven. Side one having 36 pistons 12mm dia. Max stroke 80 mm. Min stroke 5mm.
  4. Vibration section.
  5. Mould turning device to create chocolate shell in moulds.
  6. Mould cleaning section
  7. Mould turning station

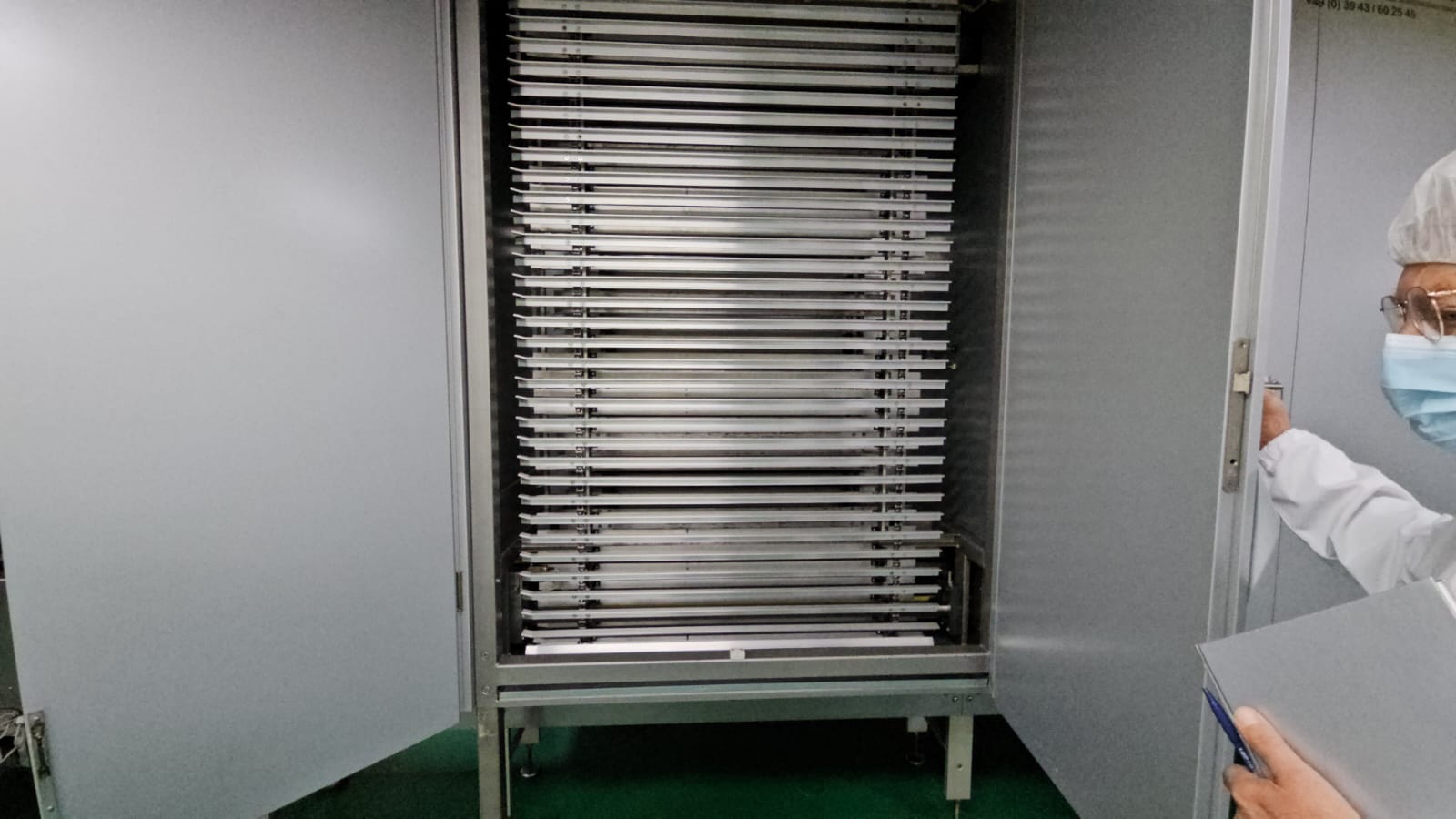

  8. Cooling cabinet
  9. Cream or chocolate depositor for shell filling.
  10. Vibrating section
  11. Cooling cabinet
  12. Another depositor, vibrating section and cooling cabinet for bottom of shell filling
  13. Automatic de-moulding
  14. One shot double side depositor 36 pistons of 12 mm each side
